AIPHONE

CABLE

share

TELECOM

CABLE

Color Code

Color Sequence

Core Count

White - Blue

2Core

White - Blue - Orange

3Core

White - Blue - Orange - Green

4Core

White - Blue - Orange - Green - Brown - Gray

6Core

White - Blue - Orange - Green - Brown - Gray - Red - Black

8Core

White - Blue - Orange - Green - Brown - Gray - Red - Black - Yellow - Violet

10Core

White - Blue - Orange - Green - Brown - Gray - Red - Black - Yellow - Violet - Pink - Turquoise

12Core

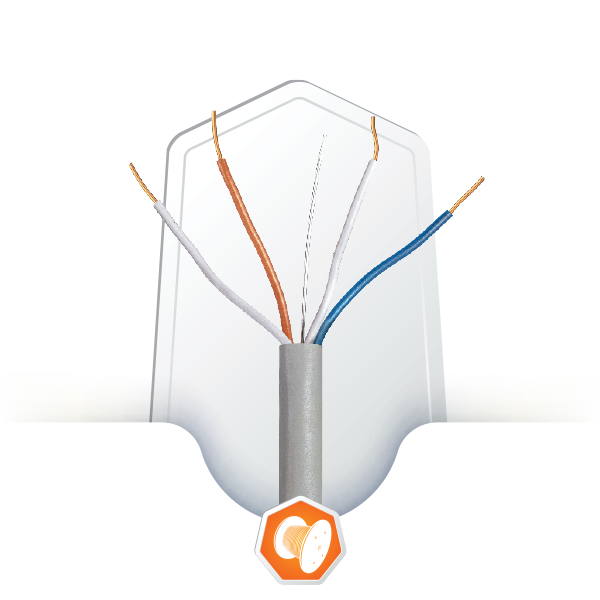

AIPHONE Cables are high-quality communication cables designed for reliable performance in Aiphone intercom and security systems. Manufactured to meet the brand’s exact specifications, they ensure clear audio, stable video signals, and secure data transmission over long distances. With precise conductor sizing, durable insulation, and easy installation, these cables provide long-term reliability for door stations, master stations, CCTV integration, and access control applications.

Description

Part

Solid plain annealed copper (0.4 mm, 0.5 mm)

Conductor

Bare copper wire (optional)

Ear th wire

PVC type TI 1

Insulation

PVC type TM 1 or type 6

Sheath

Based on IEC 25271 (or as specified)

Standard

Echnical Specifications

Standard Packing Length (meters)

Weight (Kg/Km)

Overall Diameter (mm)

Sheath Thickness (mm)

Number of Pairs x Conductor Diameter

250

9

2.3

0.4

2x0.4

250

13

2.6

0.4

4x0.4

250

19

3.2

0.5

6x0.4

250

23

3.7

0.5

8x0.4

250

27

4.0

0.5

10x0.4

250

31

4.1

0.5

12x0.4

250

10

2.6

0.4

2x0.5

250

16

3.0

0.4

4x0.5

250

24

3.7

0.5

6x0.5

250

29

4.0

0.5

8x0.5

250

36

4.6

0.5

10x0.5

250

41

4.7

0.5

12x0.5
