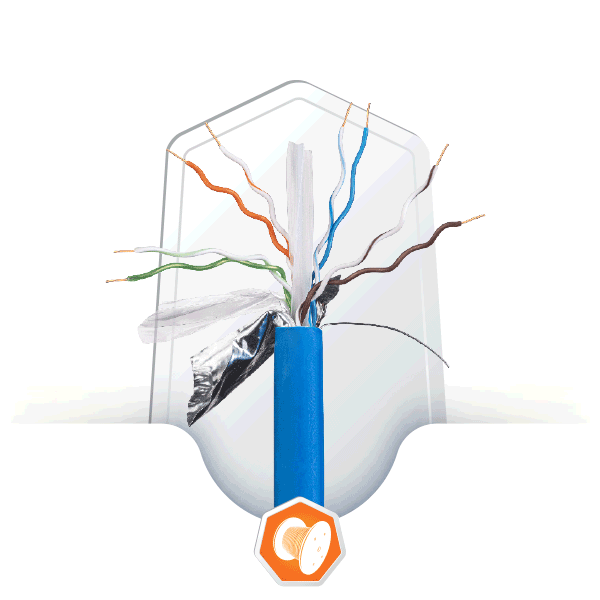

CAT 6

U/UTP CABLE

share

NETWORK

CABLE

Trust in the Flow of Production

;IRATEL CABLE

True Performance

.High-Fidelity Cabling

;IRATEL CABLE

Trust in the Flow of Production

.High-Fidelity Cabling

True Performance

CAT 6 SF/UTP 0/55 Permanent Test

Conductor

8

.Nos

0.55mm

Dia (mm)

Bare copper

Material

Insulation

8

.Nos

1mm

Dia (mm)

PE

Material

Sheath

0.6mm

Thickness

6.5mm

.External O.D

PVC-LSZH-PE

Material

Copper Diameter

Link Type

Compliance

Pass

Permanent Link

0.57mm (23 AWG)

Pass

Permanent Link

0.55mm

Pass

Permanent Link

0.52mm (24 AWG)

Cat 6 U/UTP network cable with a 0.55 mm conductor diameter is a powerful and cost-effective solution for deploying Gigabit networks in low-interference environments. With its unshielded design and precisely twisted pairs, it ensures stable, interference-free data transmission. The increased conductor size enhances conductivity, reduces signal loss, and improves performance over longer distances. This cable is well-suited for office networks, residential buildings, educational facilities, VoIP systems, and IP surveillance applications. Fully compliant with TIA/EIA-568 and ISO/ IEC 11801 standards, it offers a professional-grade solution for everyday networking infrastructures.

SHEATH PHYSICAL PROPERTIES

LSZH

PVC

Before Aging

12

12.5

Tensile Strength(MPa)

190

225

.Elongation (%)

100°×168hr

80°×168hr

Aging Period (°C× hrs)

LSZH

PVC

After Aging

6

11.5

.Tensile Strength(MPa)

100

150

Elongation (%)

-20°±2°×24hr

-20°±2° ×24hr

Cold Bend Test(°C× hrs)

ELECTRICAL CHARACTERISTICS (20°C)

69%

(%) Velocity of Propagation

100

Impedance

4941.6

Capacitance to Ground (pF/100m)

7.46

DC Resistance ( /100m)

≤3%

Conductor Resistance Unbalance (%)

Pass

Channel Link

0.48mm (26 AWG)

PSACR-F (≥ dB)

ACR-F (≥ dB)

PSNEXT (≥ dB)

NEXT (≥ dB)

INSERTION LOSS(≤dB/100m)

Return Loss (≥ dB/100m)

Frequency (MHz)

79.1

80

84.4

85.4

-

34.8

1.0

70.6

71.7

80.1

76.7

3.0

27.9

3.4

61.8

62.3

69.6

72.5

3.0

31.4

7.3

58.0

60.3

69.8

71.9

5.3

34.2

10.4

55.6

58.2

67.2

71.2

6.4

38.2

14.9

50.9

53.6

60.9

62.1

8.5

36.1

25.4

50.7

51.7

64.3

60.6

9.3

28.5

31.1

39.8

40.9

62.6

53.8

13.4

25.6

62.0

40.2

42.2

53.1

57.3

17.2

31.2

100.5

28.5

30.3

45.2

46.1

24.7

23.6

200.5

29.5

30.9

43.1

46.6

27.9

21.7

250
