J-YY

share

TELECOME

CABLE

Trust in the Flow of Production

;IRATEL CABLE

True Performance

.High-Fidelity Cabling

;IRATEL CABLE

Trust in the Flow of Production

.High-Fidelity Cabling

True Performance

Construction

Description

Part

Solid plain (or Tinned) annealed copper

Conductor

Bare copper wire (optional for up to 10 pairs)

Earth wire

PVC type TI 1

Insulation

PVC type TM 1 or type 6

Sheath

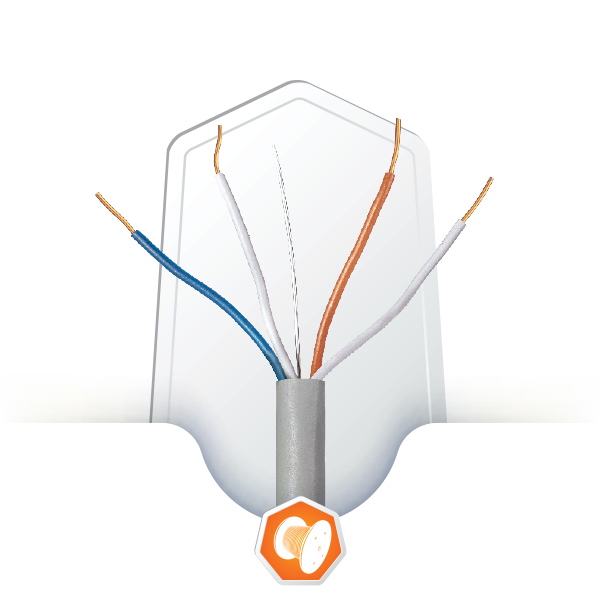

The J-YY cable is an unshielded telecommunication and control cable designed for transmitting signals, data, and control commands in both building and industrial projects. With durable PVC insulation, easy installation, and cost-effective pricing, it is an ideal choice for telephone systems, internal networks, and electrical control panels.

Echnical Specifications

Standard Packing Length (meters)

Weight (Kg/Km)

Overall Diameter (mm)

Sheath Thickness (mm)

Number of Pairs x Conductor Diameter

250

12

2.9

0.7

1x2x0.4

250

19

3.8

0.7

2x2x0.4

250

25

4.0

0.7

3x2x0.4

250

30

4.3

0.7

4x2x0.4

250

32

4.6

0.7

5x2x0.4

250

19

4.9

0.7

6x2x0.4

250

19

5.4

0.7

8x2x0.4

250

56

6.0

0.8

10x2x0.4

Standard Packing Length (meters)

Weight (Kg/Km)

Overall Diameter (mm)

Sheath Thickness (mm)

Number of Pairs x Conductor Diameter

250

15

3.2

0.7

1x2x0.5

250

23

4.3

0.7

2x2x0.5

250

28

4.6

0.7

3x2x0.5

250

35

4.9

0.7

4x2x0.5

250

41

5.4

0.7

5x2x0.5

250

47

5.6

0.7

6x2x0.5

250

59

6.2

0.7

8x2x0.5

250

73

6.9

0.8

10x2x0.5

Standard Packing Length (meters)

Weight (Kg/Km)

Overall Diameter (mm)

Sheath Thickness (mm)

Number of Pairs x Conductor Diameter

250

17

3.4

0.7

1x2x0.6

250

28

4.6

0.7

2x2x0.6

250

35

4.9

0.7

3x2x0.6

250

45

5.3

0.7

4x2x0.6

250

51

5.8

0.7

5x2x0.6

250

4759

6.1

0.7

6x2x0.6

250

74

6.8

0.7

8x2x0.6

250

94

7.5

0.8

10x2x0.6
